Product Code: W3315

OPIE Manufacturing Group Store

FIG 1.1 // PRIMARY VIEW
COORD_SYS: 45.32.X
UNIT: W3315

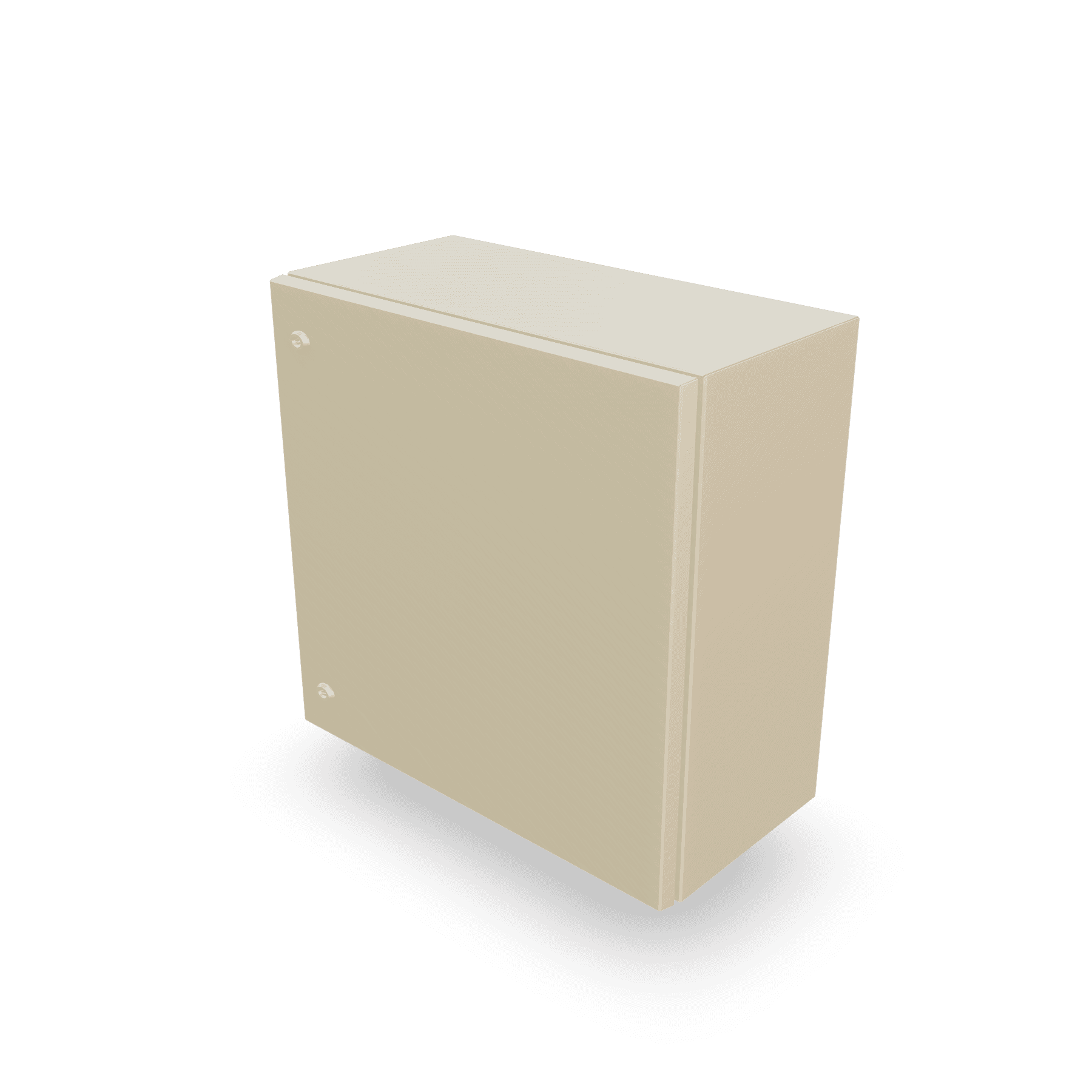

Empco General Purpose Enclosure — 300 × 300 × 155mm by OPIE Manufacturing Group
Expand
Custom Made
Visual Spec: High Fidelity Digital Capture
W3315REV. 0.04

Empco General Purpose Enclosure — 300 × 300 × 155mm

$359.00MSRP // Standard Issue
Australian-made zinc-coated steel (electrogal) electrical enclosure, 300 × 300 × 155mm, IP66. Beige ripple finish.

Technical Specs

DIMENSIONS (H × W × D):300 × 300 × 155MM

MATERIAL:ZINC-COATED STEEL (ELECTROGAL)

FINISH:BEIGE RIPPLE POLYESTER POWDERCOAT

PROTECTION:IP66

CONSTRUCTION:FULLY WELDED

MOUNTING:WALL MOUNTED

INCLUDES:GALVANISED MOUNTING PLATE + BOTTOM GLAND PLATE

Custom Made

Product Details

Empco General Purpose enclosure, 300 × 300 × 155mm (H × W × D). Fully welded zinc-coated steel (electrogal) construction, Beige ripple polyester powdercoat, certified to IP66. Wall mounted, includes galvanised mounting plate and bottom gland plate. Made in Australia.
