Product Code: W4425-EO

OPIE Manufacturing Group Store

FIG 1.1 // PRIMARY VIEW
COORD_SYS: 45.32.X
UNIT: W4425-EO

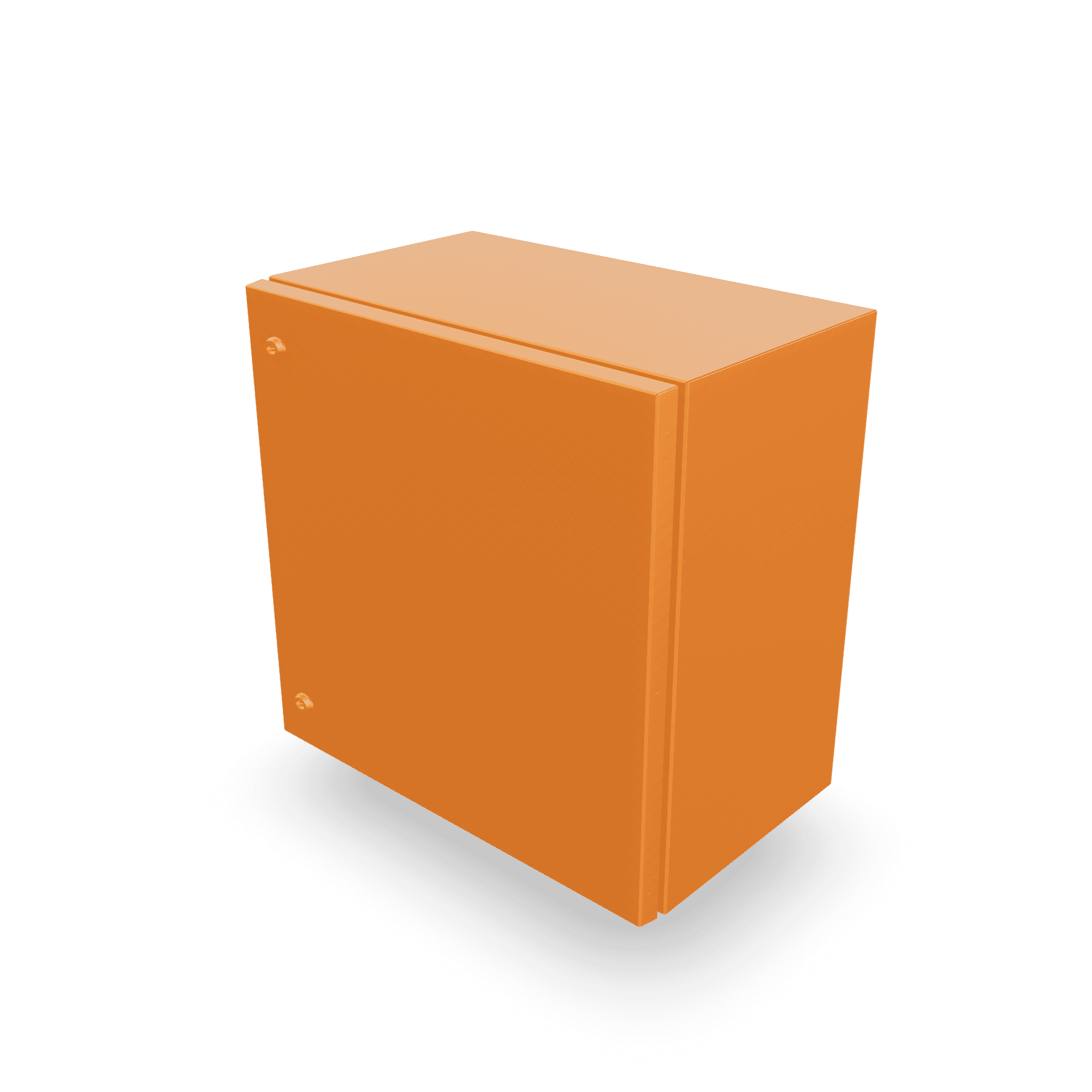

Empco Industrial Enclosure (Electric Orange) — 400 × 400 × 255mm by OPIE Manufacturing Group
Expand
Made to Specification
Visual Spec: High Fidelity Digital Capture
W4425-EOREV. 0.04

Empco Industrial Enclosure (Electric Orange) — 400 × 400 × 255mm

$711.00MSRP // Standard Issue
Australian-made zinc-coated steel (electrogal) electrical enclosure, 400 × 400 × 255mm, IP66. Electric Orange finish.

Technical Specs

DIMENSIONS (H × W × D):400 × 400 × 255MM

MATERIAL:ZINC-COATED STEEL (ELECTROGAL)

FINISH:ELECTRIC ORANGE RIPPLE POWDERCOAT

PROTECTION:IP66

CONSTRUCTION:FULLY WELDED

MOUNTING:WALL MOUNTED

INCLUDES:GALVANISED MOUNTING PLATE + BOTTOM GLAND PLATE

Made to Specification

Product Details

Empco Industrial enclosure, 400 × 400 × 255mm (H × W × D). Fully welded zinc-coated steel (electrogal) construction, Electric Orange ripple powdercoat, certified to IP66. Wall mounted, includes galvanised mounting plate and bottom gland plate. Made in Australia.
