Under One Roof: Why Integrated Manufacturing Beats a Chain of Subcontractors

Think about a typical fab­ri­cat­ed assembly. It's cut at one shop, folded at another, welded by a third, trucked to a powder coater and then sent back for assembly. Each move adds freight, waiting time and another business that can misread a drawing.

At OPIE Man­u­fac­tur­ing Group, all of it happens at one address: 109 Russell Street, Emu Heights, in Western Sydney. Here's what that looks like, and why it matters.

The hidden cost of handovers

Every handover between sub­con­trac­tors carries a cost that rarely shows up on a quote:

• Time. Each supplier has its own queue. A two-day process can turn into a two-week wait.

• Damage. Parts that travel get scratched, bent and lost.

• Ac­count­abil­i­ty. When a finished part is out of tolerance, who's re­spon­si­ble: the laser shop, the folder or the welder?

• Com­mu­ni­ca­tion. Every change has to be passed down a chain, and some get lost along the way.

In­te­gra­tion removes those gaps. One team, one schedule, one quality system.

Step by step at Emu Heights

Design for man­u­fac­ture

Our engineers start with CAD modelling and design-for-man­u­fac­ture reviews, adjusting bend reliefs, weld access and nesting before anything is cut. Pro­to­types are made on the same equipment that will run pro­duc­tion, so what you approve is what you get.

Laser and tube cutting

TRUMPF fibre lasers (6kW and 8kW) cut sheet and plate, including stainless steel up to 40mm thick, and run up to 20 hours a day, six days a week. Two TRUMPF TruLaser Tube 7000 machines cut tube and profiles with wall thick­ness­es up to 15mm, so complex hole patterns and slots come off the machine ready for assembly. A TRUMPF TruMatic 6000 combines laser cutting with punching and forming for parts that need both.

Folding and panel bending

TRUMPF TruBend press brakes, from the 7000 series through to the 230-tonne TruBend 5230, handle precision bending. A Sal­vagni­ni P2 XE panel bender produces re­peat­able cabinet and panel parts, which is why Boscotek's cabinet panels are so con­sis­tent. An LVD Dyna-Cell robotic press brake handles high-mix small parts.

Welding

Our TRUMPF TruLaser Weld 5000 robotic laser welding cell has an XL cabin of 8250 × 4800 × 3200mm and a turnover po­si­tion­er rated to 1000kg. It produces deep-pen­e­tra­tion struc­tur­al welds and clean cosmetic welds with minimal dis­tor­tion. Skilled welders handle TIG, MIG and CMT work, and handheld laser welding takes care of small, intricate as­sem­blies. Details are on the services/laser-welding">laser welding page.

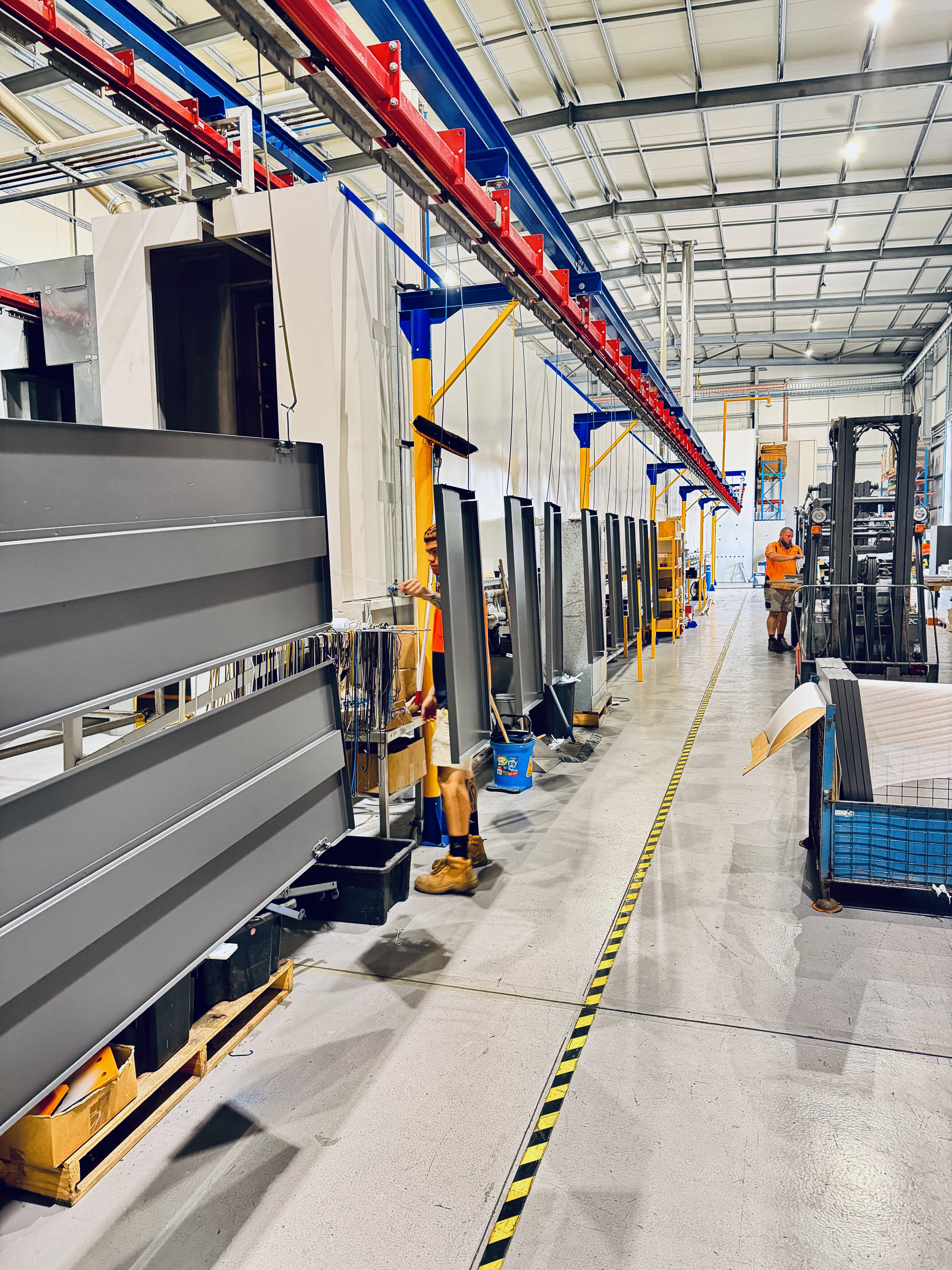

Powder coating

Our Eu­roimpianti powder coating line accepts parts up to 4600mm long, 1800mm high and 700mm wide. A six-stage chromate-free pre-treatment prepares every part. A closed-loop water system means zero waste­water, and cyclonic recovery reclaims overspray. We're an approved Interpon and Dulux ap­pli­ca­tor , so warranted finishes are available for demanding en­vi­ron­ments.

Assembly, dispatch and in­stal­la­tion

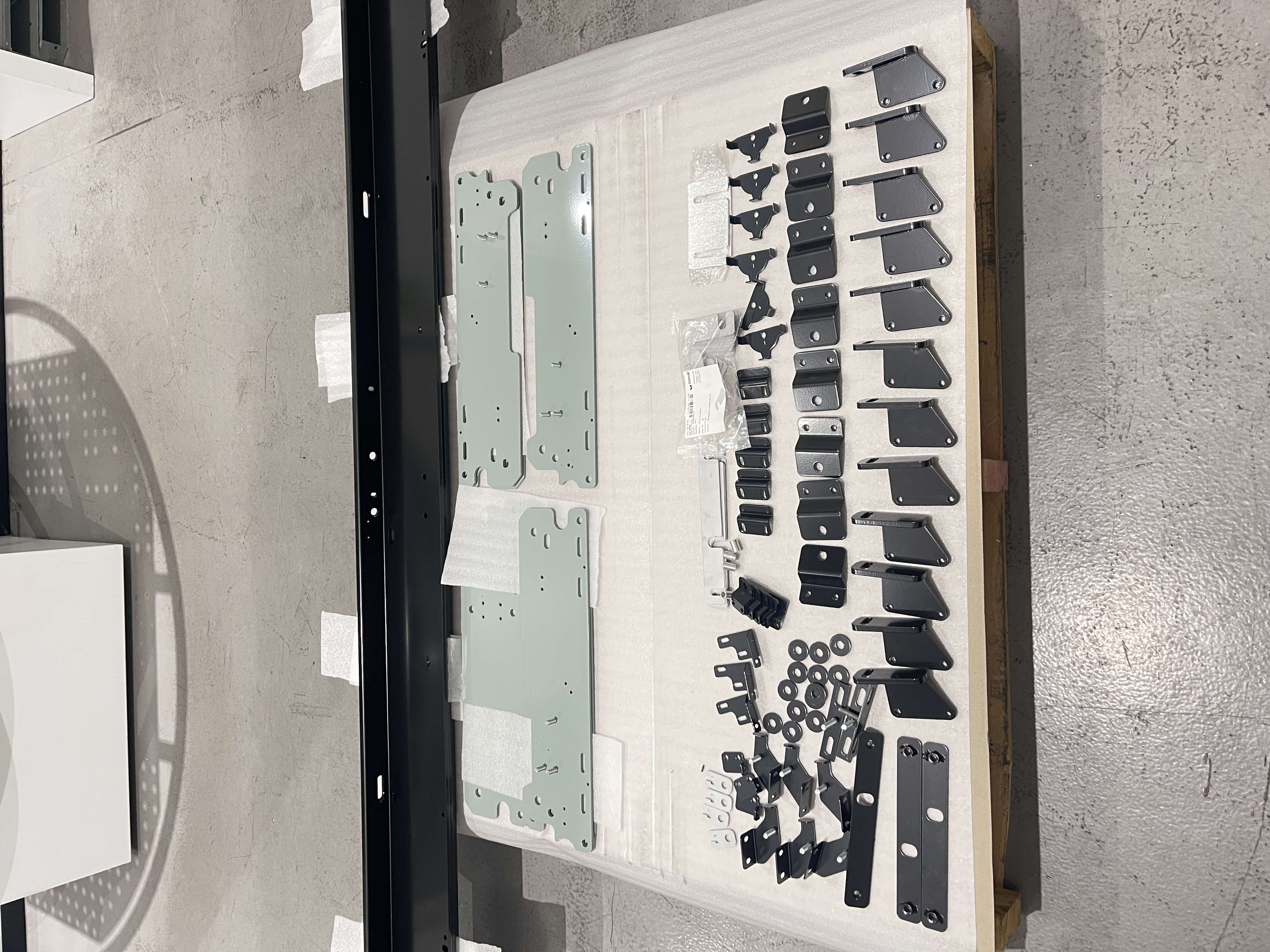

Parts are assembled, inspected and packed on site, then delivered and, where needed, installed by our own team.

What in­te­gra­tion changes for you

1. Shorter lead times. No waiting in other people's queues.

2. Fewer defects. Problems are caught at the next work­sta­tion, not at the next business.

3. Clearer ac­count­abil­i­ty. One supplier, one quality record, one point of contact.

4. Better design. Engineers who know every machine on the floor design parts that are easy to make well.

5. Trace­abil­i­ty. Materials, processes and in­spec­tions are recorded under one ISO 9001 quality man­age­ment system.

When it matters most

In­te­gra­tion matters most when the stakes are high: defence and gov­ern­ment programs that need trace­abil­i­ty, rail and in­fra­struc­ture projects with hard deadlines, health­care fit-outs where finish quality affects hygiene, and product companies that need con­sis­tent repeat pro­duc­tion.

It's also why our own brands (Boscotek, Argent, Gilkon and SMC Stainless) are made here. We trust the process because we rely on it ourselves.

See the full ca­pa­bil­i­ty on our services page, watch the machines in action on op-tv">OP-TV, or send us a drawing to start a con­ver­sa­tion.
