Product Code: W12635

OPIE Manufacturing Group Store

FIG 1.1 // PRIMARY VIEW
COORD_SYS: 45.32.X
UNIT: W12635

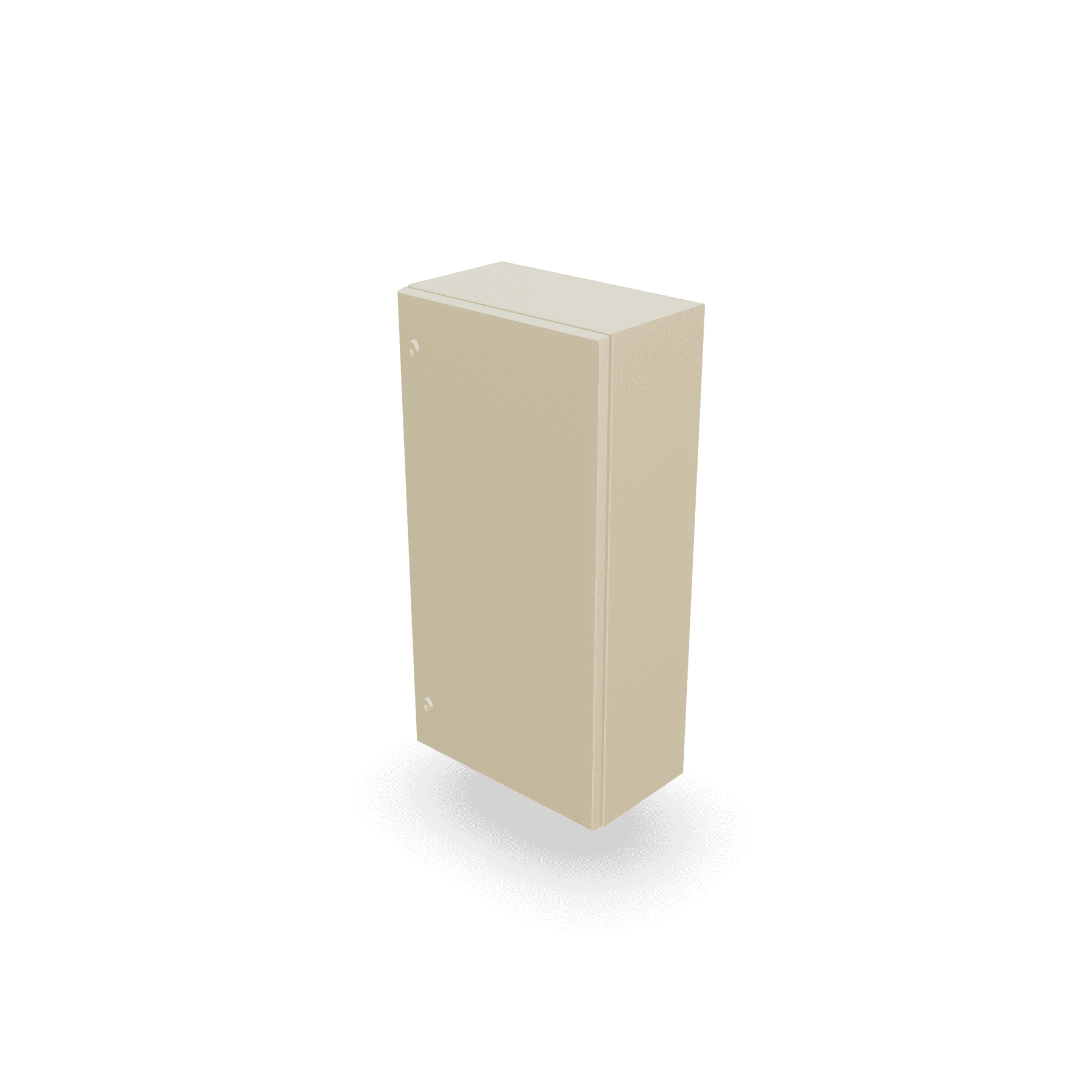

Empco General Purpose Enclosure — 1200 × 600 × 355mm by OPIE Manufacturing Group
Expand
Built to Specification
Visual Spec: High Fidelity Digital Capture
W12635REV. 0.04

Empco General Purpose Enclosure — 1200 × 600 × 355mm

$1706.00MSRP // Standard Issue
Australian-made zinc-coated steel (electrogal) electrical enclosure, 1200 × 600 × 355mm, IP66. Beige ripple finish.

Technical Specs

DIMENSIONS (H × W × D):1200 × 600 × 355MM

MATERIAL:ZINC-COATED STEEL (ELECTROGAL)

FINISH:BEIGE RIPPLE POLYESTER POWDERCOAT

PROTECTION:IP66

CONSTRUCTION:FULLY WELDED

MOUNTING:WALL MOUNTED

INCLUDES:GALVANISED MOUNTING PLATE + BOTTOM GLAND PLATE

Built to Specification

Product Details

Empco General Purpose enclosure, 1200 × 600 × 355mm (H × W × D). Fully welded zinc-coated steel (electrogal) construction, Beige ripple polyester powdercoat, certified to IP66. Wall mounted, includes galvanised mounting plate and bottom gland plate. Made in Australia.
