Product Code: WS3215
OPIE Manufacturing Group Store
FIG 1.1 // PRIMARY VIEW
COORD_SYS: 45.32.X
UNIT: WS3215
UNIT: WS3215
Expand
Engineered to Order
Visual Spec: High Fidelity Digital Capture
WS3215REV. 0.04

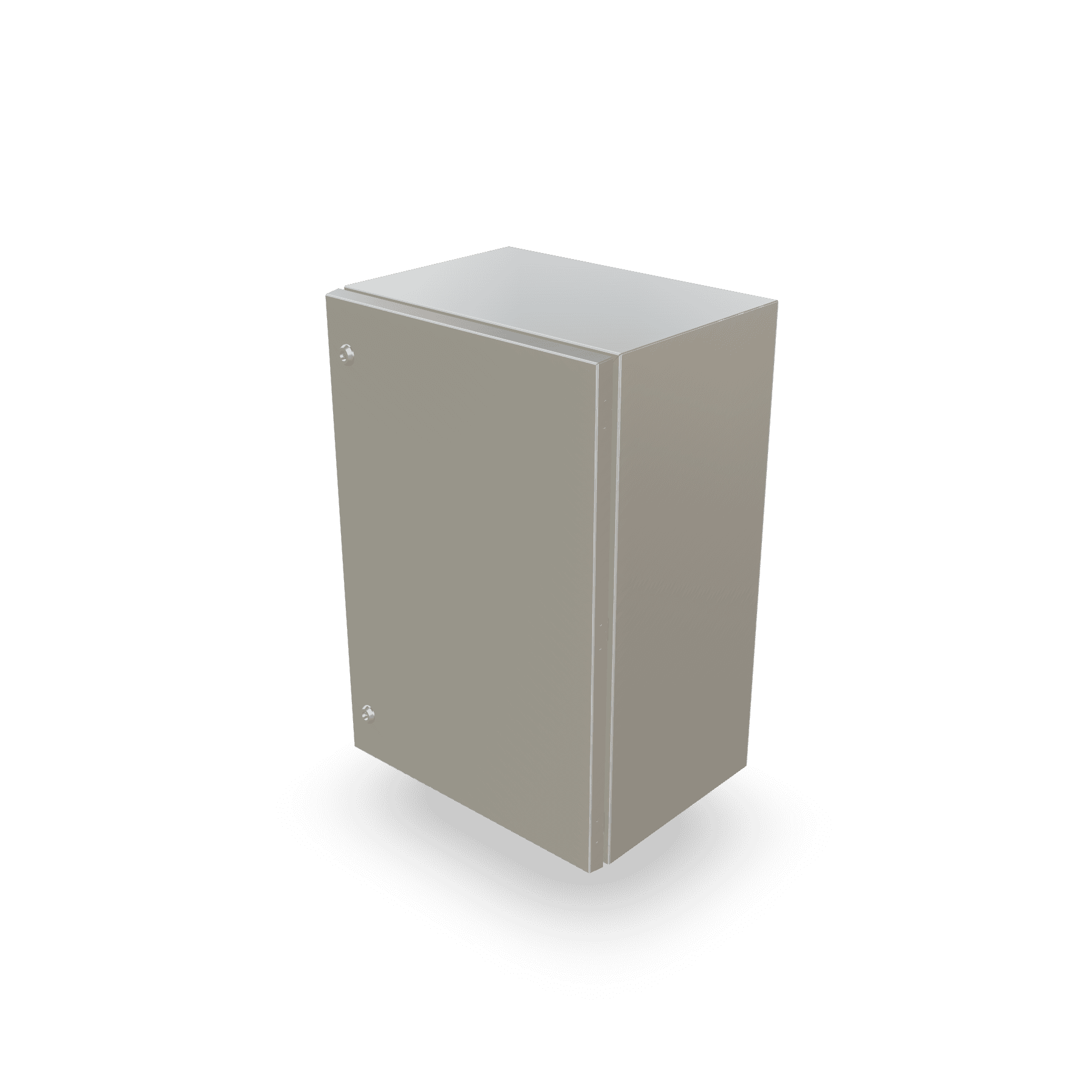

Empco Stainless Steel Enclosure — 300 × 200 × 155mm
$845.00MSRP // Standard Issue
Australian-made grade 316 stainless steel electrical enclosure, 300 × 200 × 155mm, IP66. Beige ripple finish.
Technical Specs
DIMENSIONS (H × W × D):300 × 200 × 155MM
MATERIAL:GRADE 316 STAINLESS STEEL
FINISH:NATURAL NO.4 LINISH
PROTECTION:IP66
CONSTRUCTION:FULLY WELDED
MOUNTING:WALL MOUNTED
INCLUDES:GALVANISED MOUNTING PLATE + BOTTOM GLAND PLATE
Engineered to Order
Product Details
Empco Stainless Steel enclosure, 300 × 200 × 155mm (H × W × D). Fully welded grade 316 stainless steel construction, Natural No.4 linish, certified to IP66. Wall mounted, includes galvanised mounting plate and bottom gland plate. Made in Australia.
