Product Catalogue
Product Code: WS585825
OPIE Manufacturing Group Store
FIG 1.1 // PRIMARY VIEW
COORD_SYS: 45.32.X
UNIT: WS585825
UNIT: WS585825
Expand
Manufactured to Order
Visual Spec: High Fidelity Digital Capture
WS585825REV. 0.04

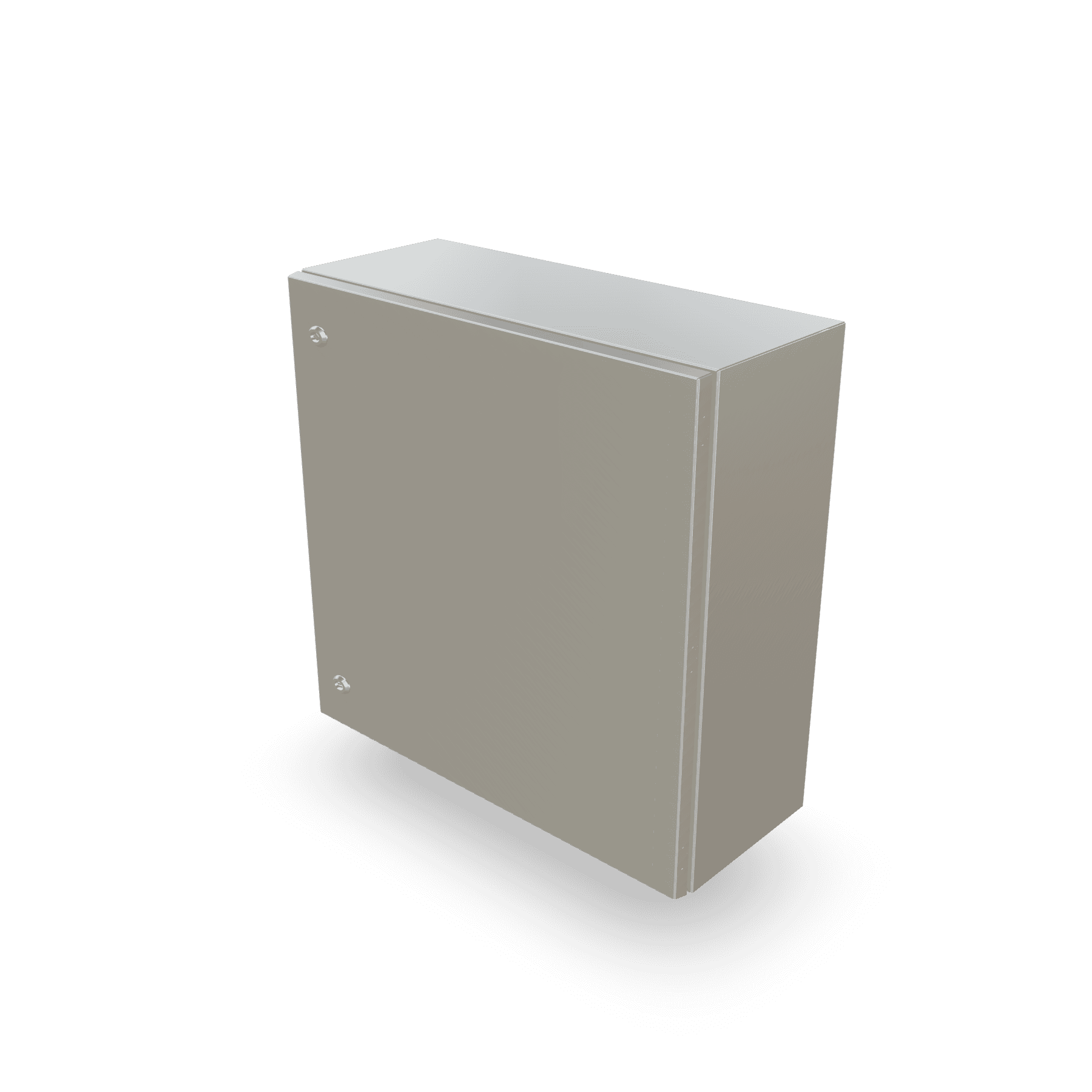

Empco Stainless Steel Enclosure — 580 × 580 × 255mm
$1923.00MSRP // Standard Issue
Australian-made grade 316 stainless steel electrical enclosure, 580 × 580 × 255mm, IP66. Beige ripple finish.
Technical Specs
DIMENSIONS (H × W × D):580 × 580 × 255MM
MATERIAL:GRADE 316 STAINLESS STEEL
FINISH:NATURAL NO.4 LINISH
PROTECTION:IP66
CONSTRUCTION:FULLY WELDED
MOUNTING:WALL MOUNTED
INCLUDES:GALVANISED MOUNTING PLATE + BOTTOM GLAND PLATE
Manufactured to Order
Product Details
Empco Stainless Steel enclosure, 580 × 580 × 255mm (H × W × D). Fully welded grade 316 stainless steel construction, Natural No.4 linish, certified to IP66. Wall mounted, includes galvanised mounting plate and bottom gland plate. Made in Australia.
